Description
Kenmerken:

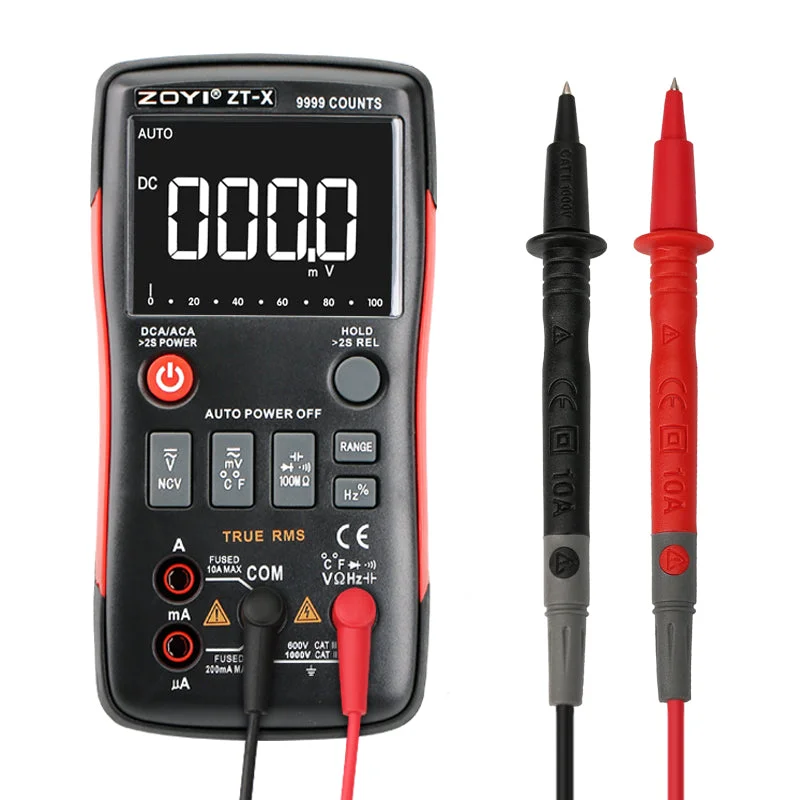

1. LCD-scherm met achtergrondverlichting, 9999 counts True RMS automatisch bereikbare multimeter.
2. DC/AC spanning, weerstand, condensator en frequentietestfunctie.
3. Inclusief data hold, duty cycle, NCV, continuïteit en diodetestfunctie.
4. Automatische uitschakeling.
Specificaties:
| Functie | Reeks | Resolutie | Nauwkeurigheid | |
| DC-spanning (V) | 999.9mV | 0.1mV | ± (0,5% + 3) | |
| 9.999V | 0.001V | |||
| 99.99V | 0.01V | |||
| 999.9V | 0.1V | |||
| DC-spanning (mV) | 9.999mV | 0.001mV | ||
| 99.99mV | 0.01mV | |||
| AC-spanning (V) | 999.9mV | 0.1mV | ± (1,0% + 3) | |
| 9.999V | 0.001V | |||
| 99.99V | 0.01V | |||
| 750.0V | 0.1V | |||
| AC-spanning (mV) | 9.999mV | 0.001mV | ||
| 99.99mV | 0.01mV | |||
| DC-stroom (mA en A) | 999.9mA | 0.1mA | ± (1,0% + 3) | |
| 9.999A | 0.001A | |||
| DC-stroom (μA) | ± (0,8% + 3) | |||
| 9999μA | 1μA | |||
| AC-stroom (mA en A) | 999.9mA | 0.1mA | ± (1,2% + 3) | |
| 9.999A | 0.001A | |||
| AC-stroom (μA) | ± (1,0% + 3) | |||
| 9999μA | 1μA | |||
| Weerstand | 99.99Ω | 0.01Ω | ± (1,0% + 3) | |
| 999.9Ω | 0.1Ω | ± (0,5% + 3) | ||
| 9.999kΩ | 0.001kΩ | |||
| 99.99kΩ | 0.01kΩ | |||
| 999.9kΩ | 0.1kΩ | |||
| 9.999MΩ | 0.001MΩ | ± (1,5% + 3) | ||
| 99.99MΩ | 0.01MΩ | ± (3,0% + 5) | ||
| Condensator | 9.999nF | 0.001nF | ± (5,0% + 20) | |
| 99.99nF | 0.01nF | ± (2,0% + 5) | ||
| 999.9nF | 0.1nF | |||
| 9.999μF | 0.001μF | |||
| 99.99μF | 0.01μF | |||
| 999.9μF | 0.1μF | ± (5,0% + 5) | ||
| Frequentie | 99.99Hz | 0.01Hz | ± (0,1% + 2) | |
| 999.9Hz | 0.1Hz | |||
| 9.999kHz | 0.001kHz | |||
| 99.99kHz | 0.01kHz | |||
| 999.9kHz | 0.1kHz | |||
| 2.000MHz | 0.001MHz | |||
| Arbeidscyclus | 1% ~ 99% | 0,1% | ± (0,1% + 2) | |
| Diode | √ | |||
| Continuïteit | √ | |||
| NCV | √ | |||
| Temperatuur | (-20 -1000) °C | 1 °C | ± (2,5% + 5) | 1000 °C |
| (-4 ~ 1832) °F | 1 °F | 1832 °F | ||
| Display (LCD) | 9999 Counts | |||
| Variërend | Auto / Handmatig | |||
| Materiaal | ABS + TPE | |||
| Update frequentie | 3 keer / seconde | |||
| True RMS | √ | |||
| Data Hold | √ | |||
| Meting van relatieve waarden | √ | |||
| MAN / MIN | x | |||
| Achtergrondverlichting | √ | |||
| Indicatie batterij bijna leeg | √ | |||
| Auto Power Off | √ | |||
| Bedrijfstemperatuur | 0 ~ 40 °C | Vochtigheid < 75% | ||
| Opslagtemperatuur | -20 ~ 60 °C | Vochtigheid < 80% |
Pakket bevat:
1 x digitale multimeter (batterij niet inbegrepen)
1 x kabel
1 x gebruikershandleiding
1 x tas
